Axial Fan

Insulation & Ventilation

An axial fan is a type of industrial and commercial fan in which air is drawn parallel to the axis around which the blades rotate. Rather than throwing air outward horizontally or centrifugally, the blades force the air to move directly along the shaft axis—creating high-volume, straight-through airflow at low to medium pressures.

Core Types of Axial Fans

Propeller Fans: Simple, open-frame design with blades attached to a motor shaft. Commonly used for general ventilation, wall exhaust, and room cooling where resistance to airflow is low.
Tube Axial Fans: Heavy-duty propeller fan enclosed inside a cylindrical duct or tube. Designed to overcome moderate pressure in ductwork, fume extraction systems, and HVAC ducts.
Vane Axial Fans: Equipped with static guide vanes placed downstream or upstream of the impeller. The vanes straighten helical air rotation, converting swirl energy into static pressure for long-distance ducting.
Variable Pitch Fans: Feature blades whose angle (pitch) can be adjusted manually or automatically to regulate airflow volume based on demand.

Additional Information
Enquiry

Key Applications

HVAC & Building Ventilation: Supply, return, and exhaust air handling in commercial structures, basements, and parking garages.
Electronics & Equipment Cooling: Small DC axial fans used in computers, server racks, and power supplies to extract heat.
Industrial Cooling Towers & Heat Exchangers: Large-diameter axial fans moving large volumes of ambient air across cooling coils or water radiators.
Tunnel & Underground Ventilation: Heavy-duty jet fans placed along tunnel ceilings to clear smoke, heat, and vehicle emissions.

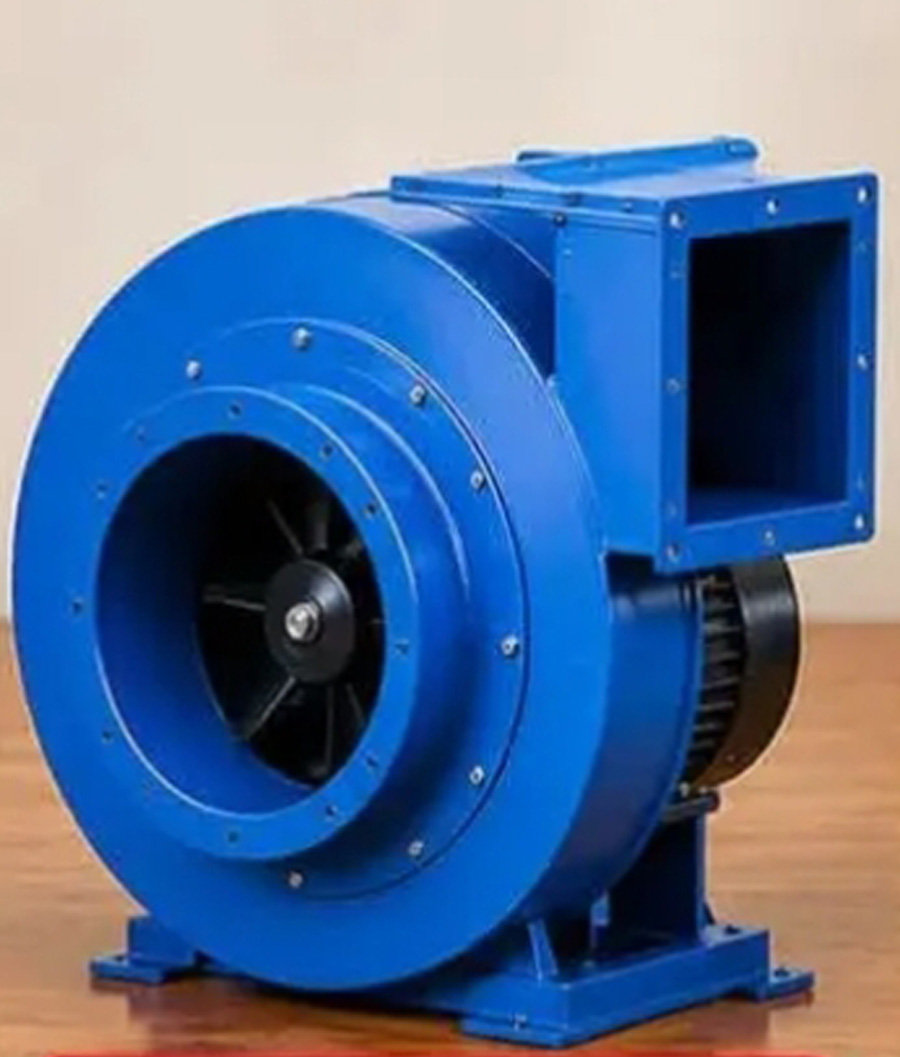

Centrifugal Fan vs. Axial Fan

Feature	Centrifugal Fan	Axial Fan
Airflow Direction	Enters axially, discharges at a 90∘ angle	Straight-through parallel to the shaft
Pressure Capabilities	High static pressure	Low to Moderate static pressure
Airflow Volume	Low to Moderate airflow rate	High airflow rate
System Resistance	Handles high resistance (filters, dampers, tight ductwork)	Best for low-resistance open spaces
Durability	Rugged housing options built for harsh/dirty environments	Suited primarily for clean air or gas streams
